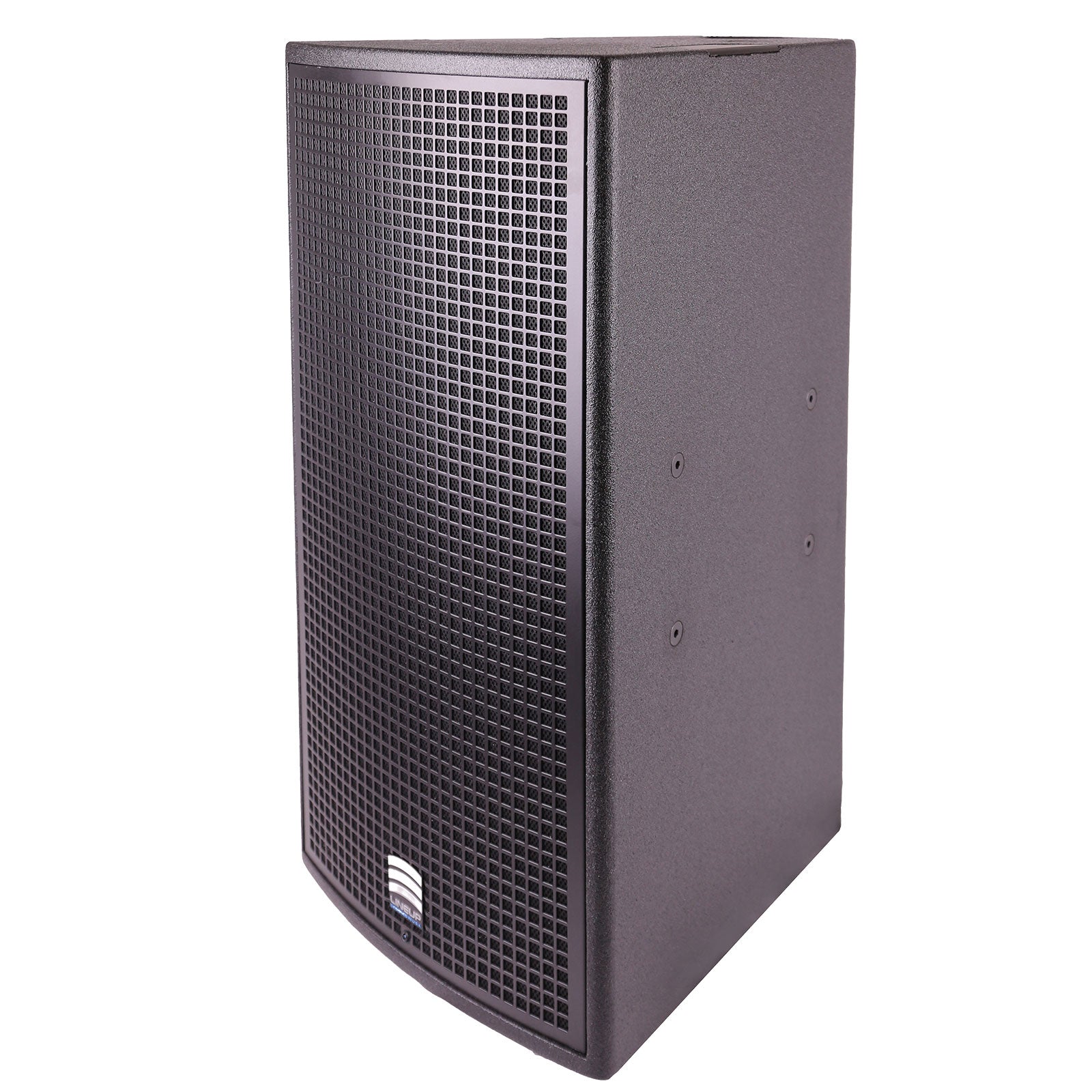

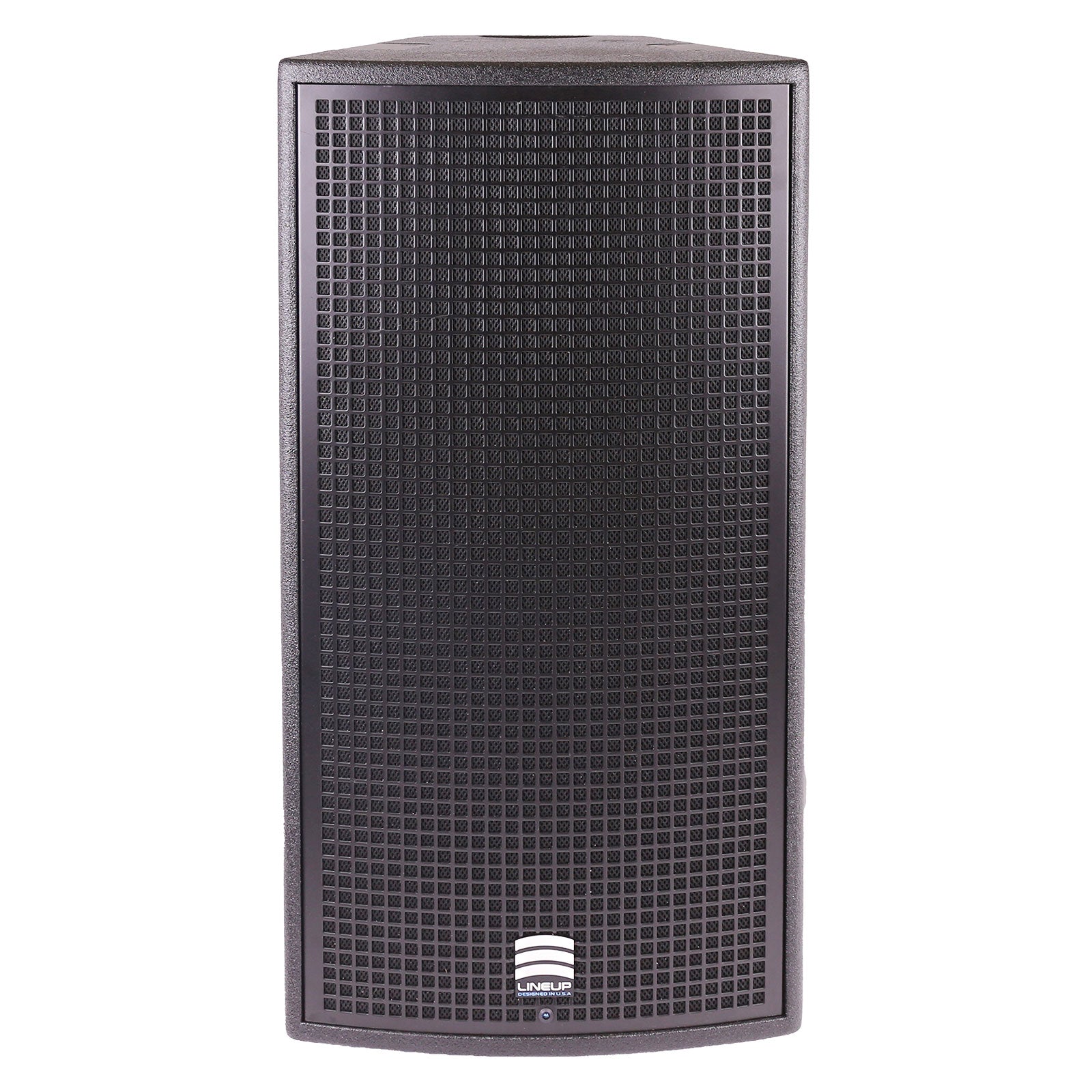

Dual 12-Inch 3-Way Active Speaker with Neodymium Components, 1800W RMS POINT12

The Lineup Audio POINT12 is a dual 12-inch 3-way active speaker designed for professional sound reinforcement with neodymium components, a 3-channel Class D amplifier, and onboard DSP control. It features 5 DSP presets, Lineup DSP software, 96Khz / 32 Bit DSP, and professional XLR, RJ45, and Powercom connectivity. The POINT12 delivers 1800 watts RMS, 3600 watts peak, 137 dB max SPL, and a 62Hz - 18KHz frequency response.

Key features

• 3-way hi definition active point source

• Neodymium components

• 3 channels amplifier

• Class D

• 5 DSP presets

• Lineup DSP software

• 1800 watts RMS

• 3600 watts peak

• Max SPL: 137 dB

• Frequency response: 62Hz - 18KHz

• Windows compatible DSP control

• Amplifier rain cover included

Technical specifications

Amplifier

• 3 channels Class D amplifier

• 1800 watts RMS / 3600 watts peak

• Power supply: AC 100-240V 50/60Hz

• 8A consumption @ 110V

• 4A consumption @ 220V

• Powercom input connector

DSP

• Windows compatible

• 96Khz - 32 Bit DSP

• 5 easy access presets with onboard recall knob

• Input gain, input noise reduction, GEQ, crossover, delay, limiter

• Save & load to amplifier memory and PC

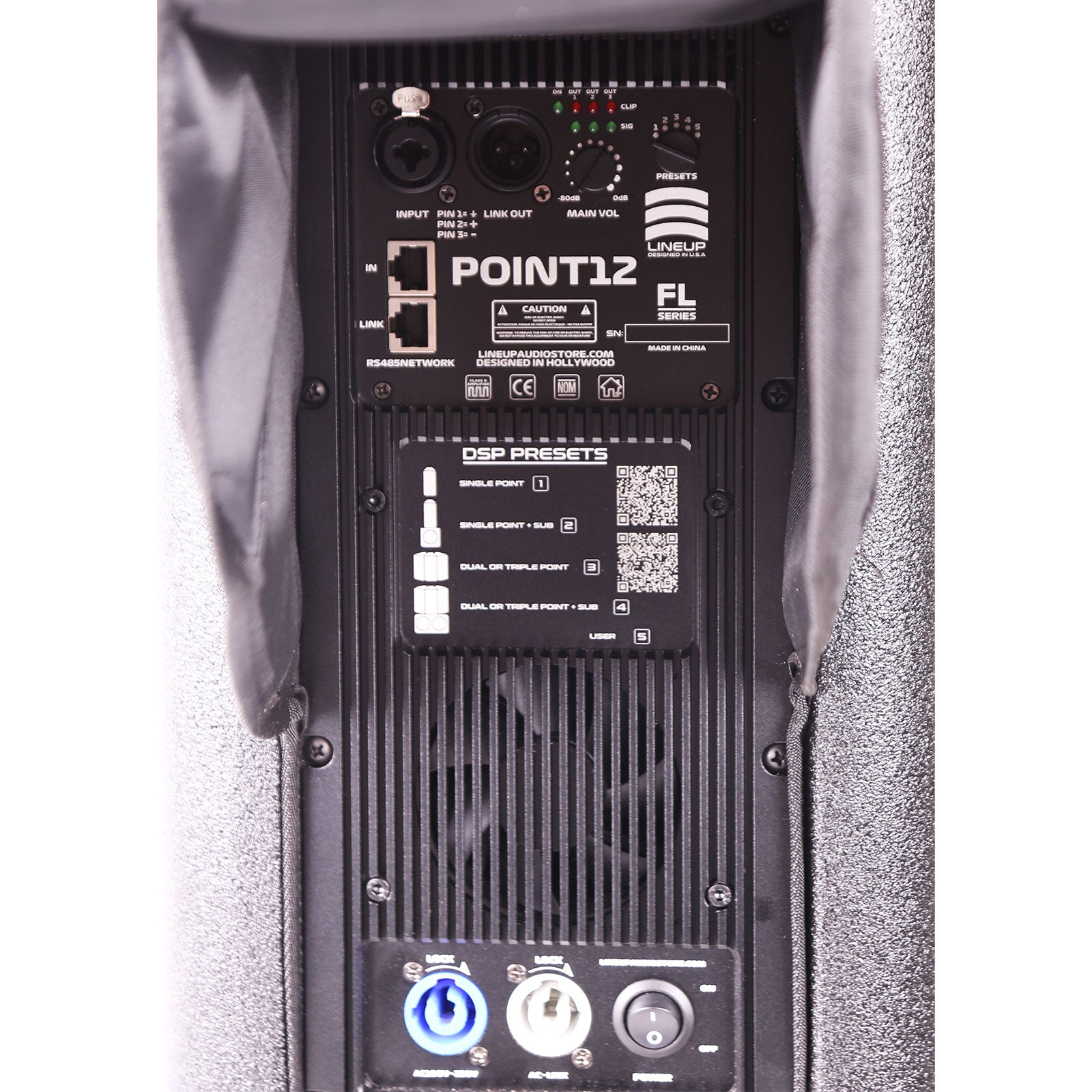

Input / Output

• Audio signal: XLR input / output connectors

• DSP: RJ45 input / link network ports

• AC power: Powercom input port

Components

• HF: 1 x 4” + 1 x 2.5” neodymium coaxial mid and driver

• LF: 2 x 12” neodymium woofer, 3” voice coil

• HF 380W / LF 2000W (Peak)

• Sensitivity: 105 dB @ 1M / 1W

Cabinet

• 15mm plywood

• Sanding texture black polyurea paint

• Black perforated steel protective grill

• Horizontal dispersion: 90°

• Vertical dispersion: 32°

• ABS driver horn

• Amplifier rain cover included
