D4-6K is a 4 channel Class D power amplifier designed for professional sound reinforcement applications. It features front-panel level controls for channels A, B, C, and D, LED indicators for signal and clip status, stereo / bridge-mono / parallel-mono operation, Neutrik Combo input connectors, XLR link connections, and Neutrik Speakon 4 speaker outputs. The D4-6K delivers 1300W x 4 at 8 ohms, 2400W x 4 at 4 ohms, and 4800W x 2 bridged at 8 ohms.
Key Features
- 4 channel Class D power amplifier
- 1300W x 4 @ 8 ohms
- 2400W x 4 @ 4 ohms
- 4800W x 2 bridged @ 8 ohms
- Stereo, Bridge-Mono, and Parallel-Mono operation
- Neutrik Combo input connectors
- XLR link connections
- Neutrik Speakon 4 speaker outputs
- Automatic speed motor fan cooling
- Protection for overheat, short circuits, DC, limit, soft start, output relay-zero current switch, and intellectual clip limiter
Technical Specifications
Output Power (THD ≤ 0.1%)
- 1300W x 4 @ 8 ohms
- 2400W x 4 @ 4 ohms
- 4800W x 2 bridged @ 8 ohms
Performance
- Frequency response: 20Hz - 20KHz (+0 / -0.5dB)
- Signal to noise ratio: >105dB
- Crosstalk: >65dB
- T.H.D. (1KHz): <0.015%
- T.H.D. (20Hz - 20KHz): <0.03%
- Damping factor (F ≤ 1KHz 8Ω): >650
- Slew rate: >45V / us
Input / Output
- Input sensitivity: 0.775V, 1V, 1.4V
- Input impedance (balanced / unbalanced): 20K ohm / 10K ohm

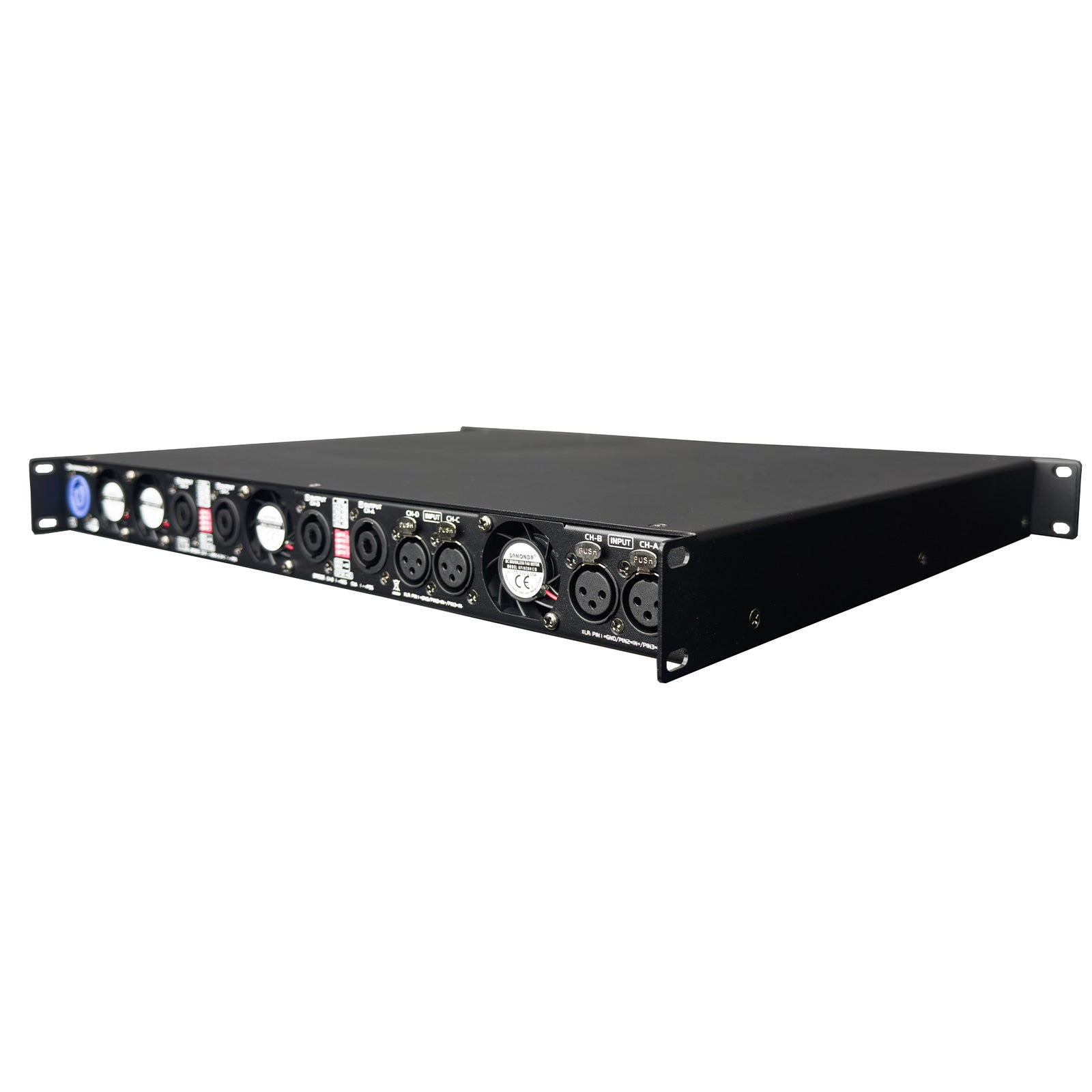

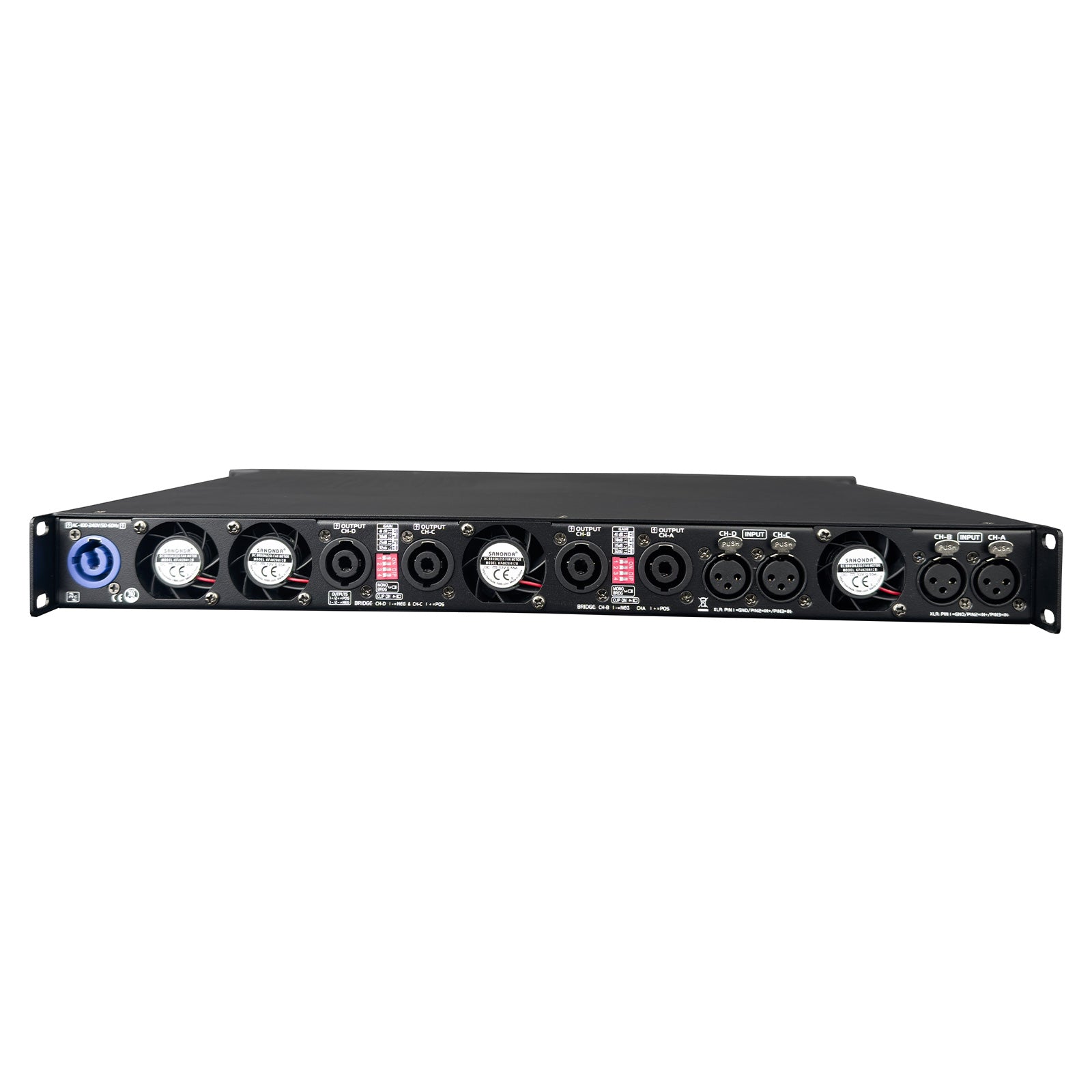

- Rear connectors: Neutrik Combo input, XLR link, Neutrik Speakon 4 connectors output
- Input voltage: 100/240VAC 50-60Hz
Controls

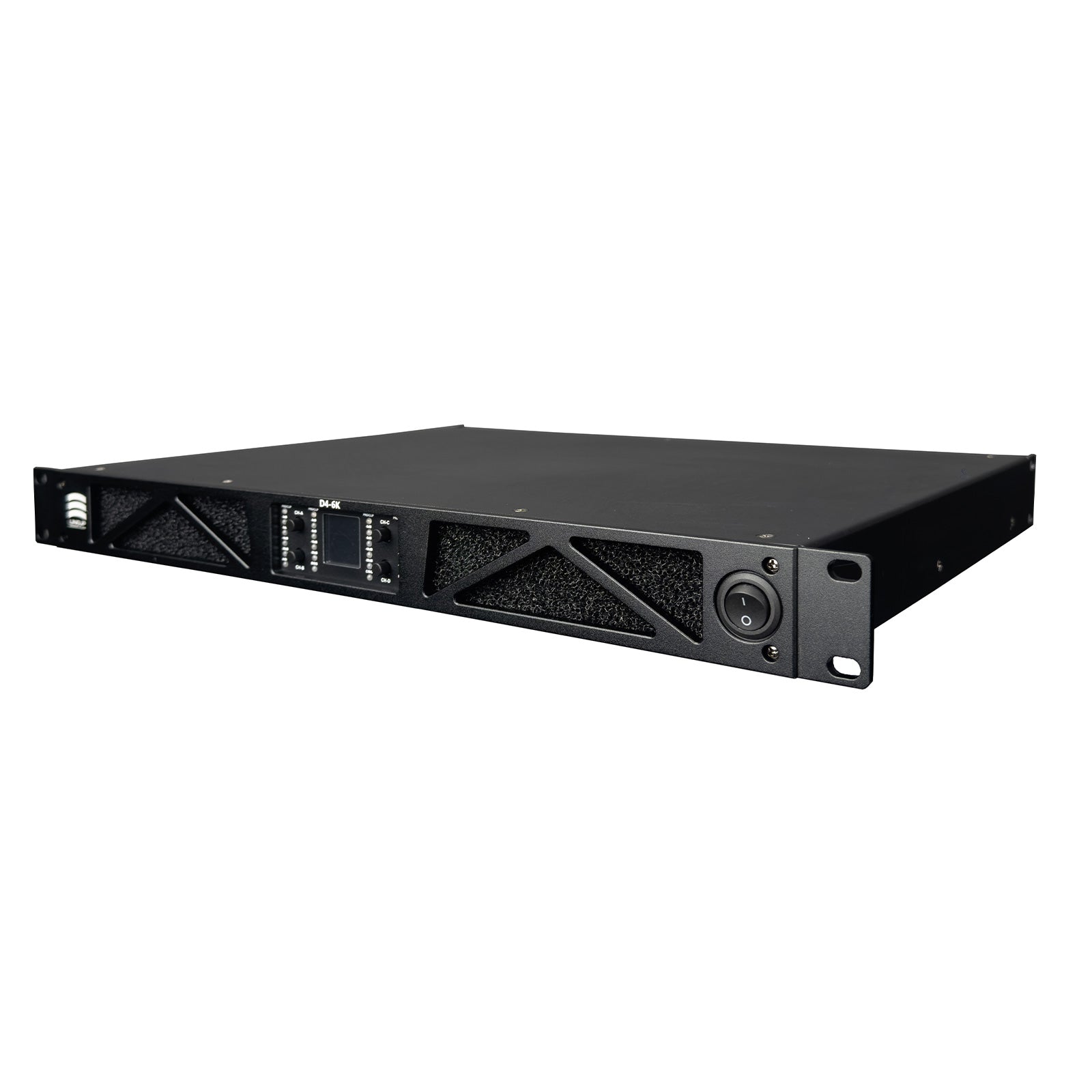

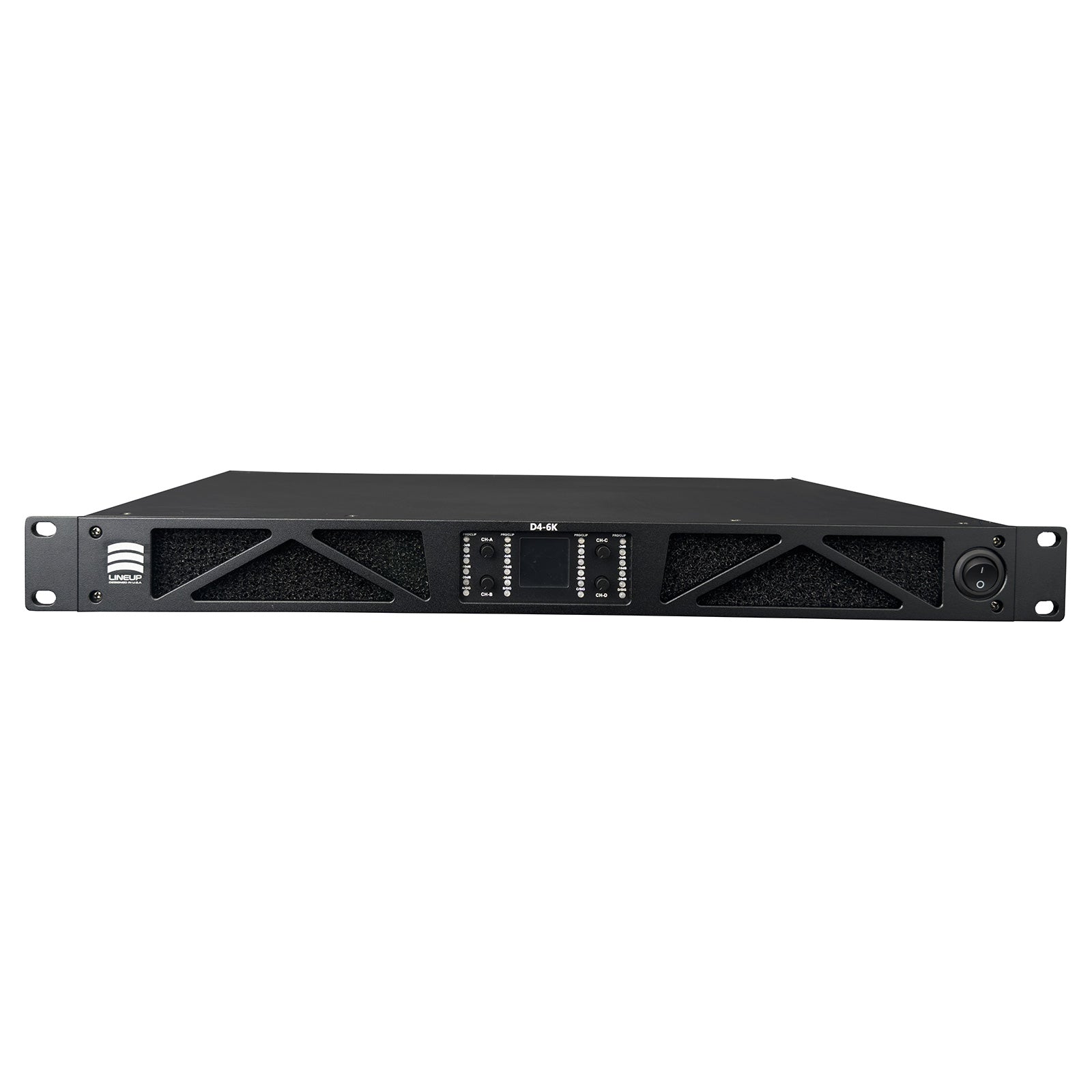

- Front panel control: level control, power on / off
- Rear panel control: input sensitivity selector, ground selector, operation mode selector, high pass filter selector, crossover selector, limiter selector
Protection / Cooling / Indicators
- Protection: overheat, short circuits, DC, limit and soft start, output relay-zero current switch, intellectual clip limiter
- Signals: Power / Stand by LED, Protection LED, Signal LED, Clip LED, Bridge LED
- Cooling method: automatic speed motor fan cooling
