15-Inch Active PA Speaker with Class D Amplifier, DSP + FIR, 1100W RMS SHOT-15A

The Lineup Audio GA SHOT-15A is a 15-inch active speaker designed for professional sound reinforcement, combining a 2-channel Class D amplifier, DSP + FIR processing, and a rugged plywood cabinet. It features 5 DSP presets, Lineup FL DSP software, 96Khz / 32 Bit DSP, and professional XLR, RJ45, and Powercom connectivity. The SHOT15 delivers 1100 watts RMS, 2200 watts peak, 124 dB max SPL, and a 50Hz - 18KHz frequency response.

Key features

• Hi definition active system

• 2 channels amplifier

• Class D

• DSP + FIR

• 5 DSP presets

• Lineup FL DSP software

• 1100 watts RMS

• 2200 watts peak

• Max SPL: 124 dB

• Frequency response: 50Hz - 18KHz

• M10 rigging points

• Compatible with point bumper

• Amplifier rain cover included

Technical specifications

Amplifier

• 2 channels Class D amplifier

• 1100 watts RMS / 2200 watts peak

• Power supply: AC 100-240V 50/60Hz

• 3.82A consumption @ 110V

• 1.1A consumption @ 220V

• Powercom input connector

• Front LED light power indicator

DSP

• DSP + FIR

• Windows compatible

• 96Khz - 32 Bit DSP

• 5 easy access presets with onboard recall knob

• Input gain, input noise reduction, GEQ, crossover, delay, limiter

• Save & load to amplifier memory and PC

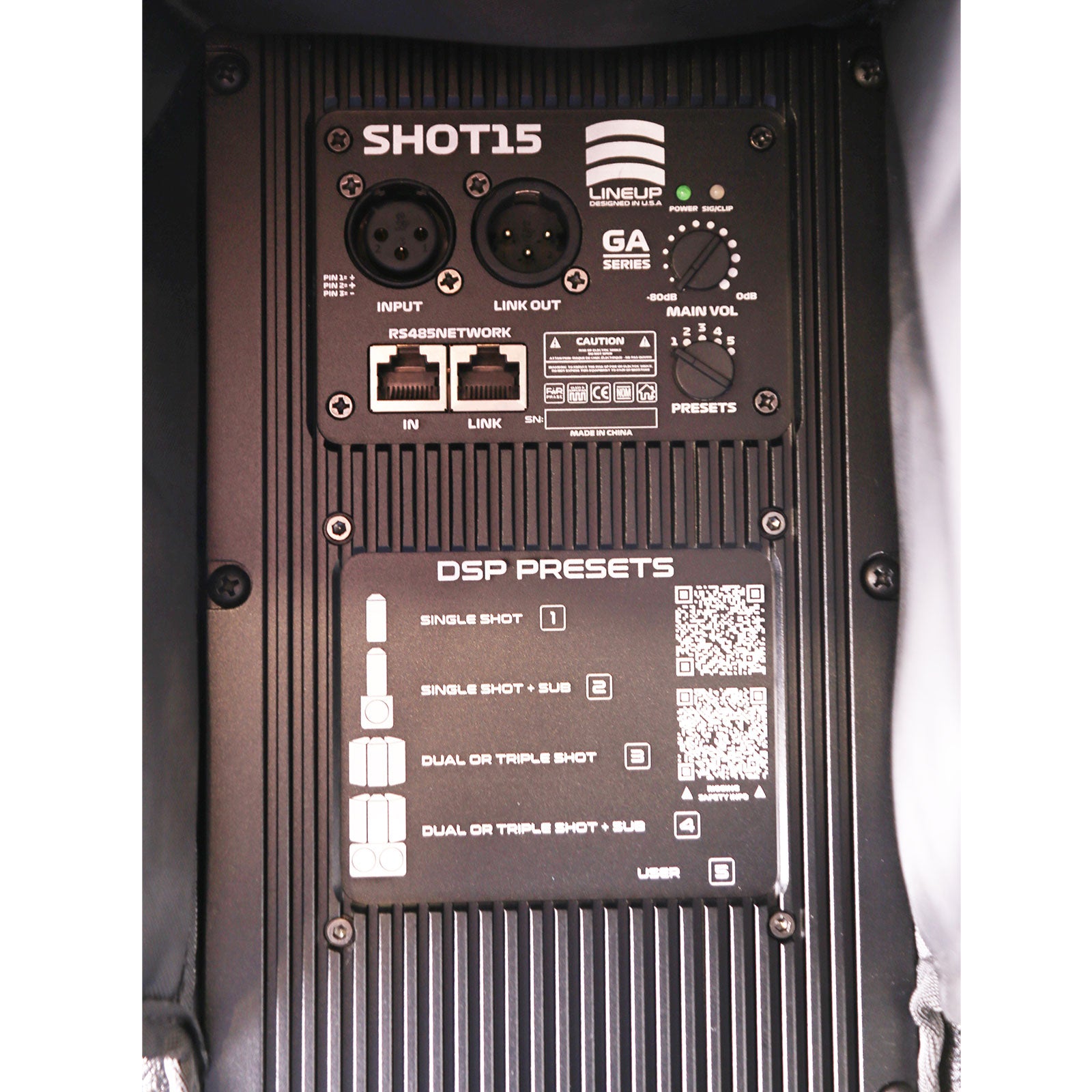

Input / Output

• Audio signal: XLR input / output connectors

• DSP: RJ45 input / link network ports

• AC power: Powercom input port

Components

• LF: 1 x 15” ferrite woofer, 4” voice coil

• HF: 1 x 3” ferrite driver

• Power: HF 100W / LF 500W (RMS)

• Power: HF 200W / LF 1000W (Peak)

• Sensitivity: 98 dB @1M / 1W

• Maximum SPL: 124 dB

• Nominal impedance: HF 8 ohm / LF 4 ohm

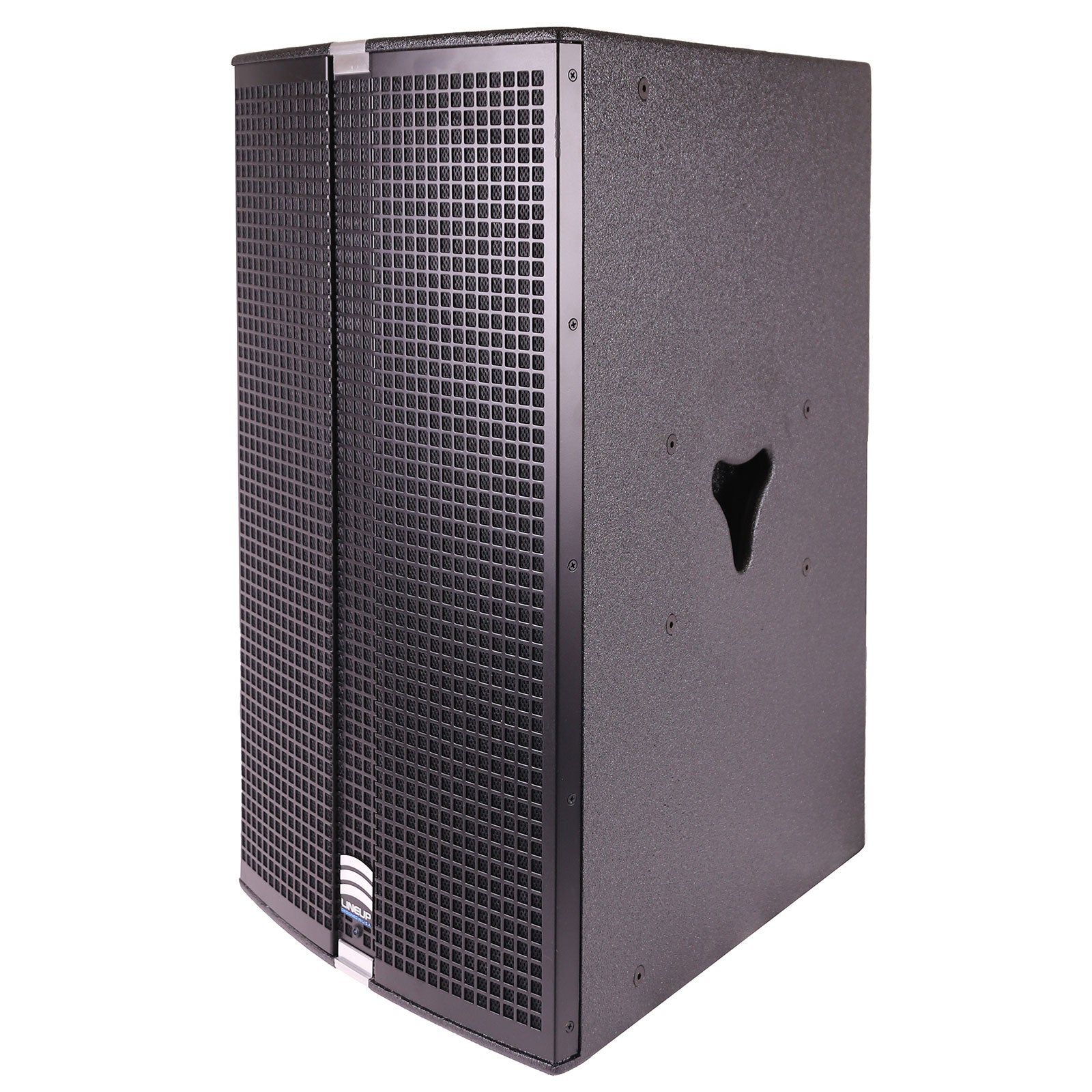

Cabinet

• 15mm plywood

• Sanding texture black polyurea paint

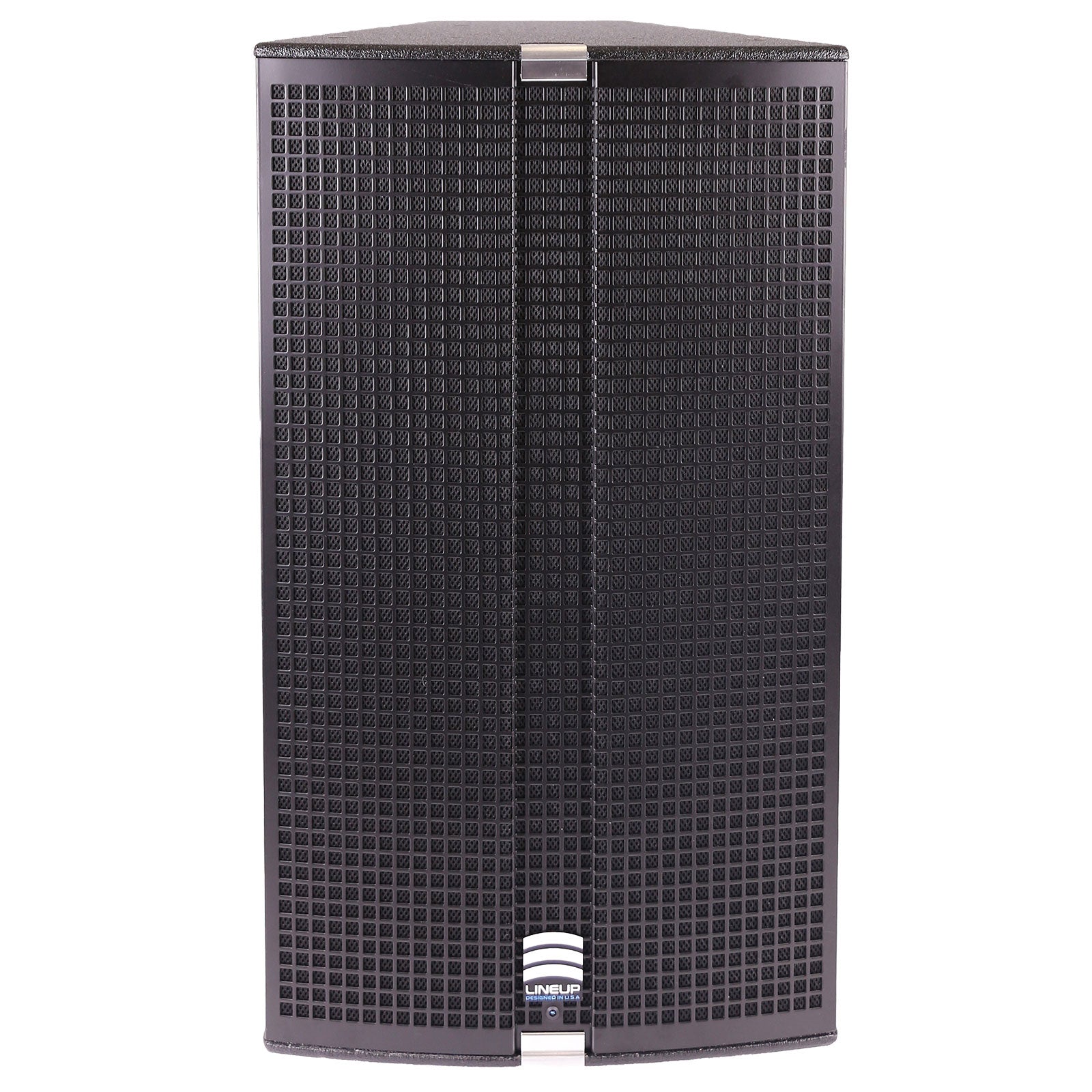

• Black perforated steel protective grill

• M10 rigging points

• Compatible with point bumper

• Horizontal dispersion: 80°

• Vertical dispersion: 50°

• ABS driver horn

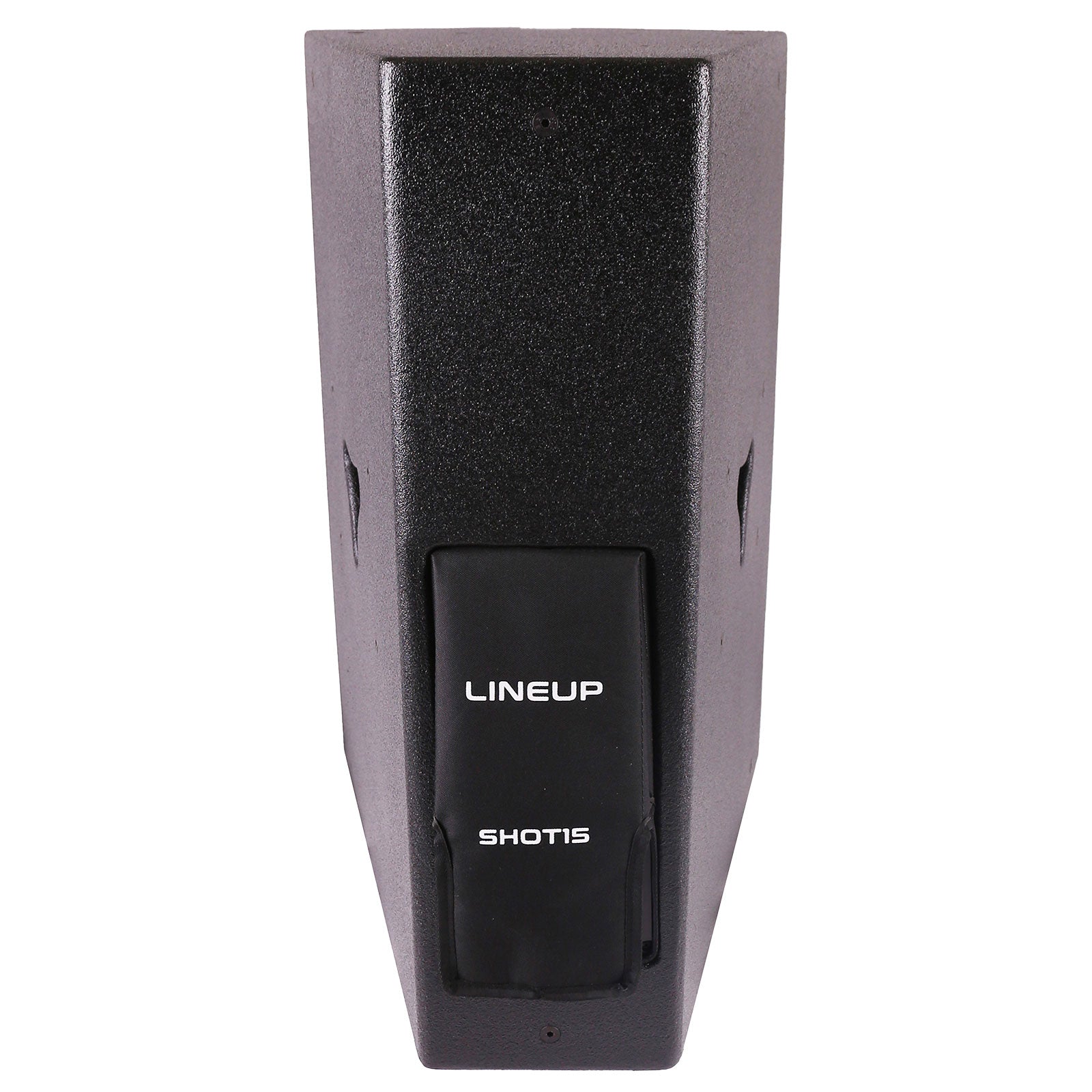

• Amplifier rain cover included

Dimensions

• Product dimensions: 445 x 543 x 747 mm

• Package dimensions: 515 x 613 x 825 mm
