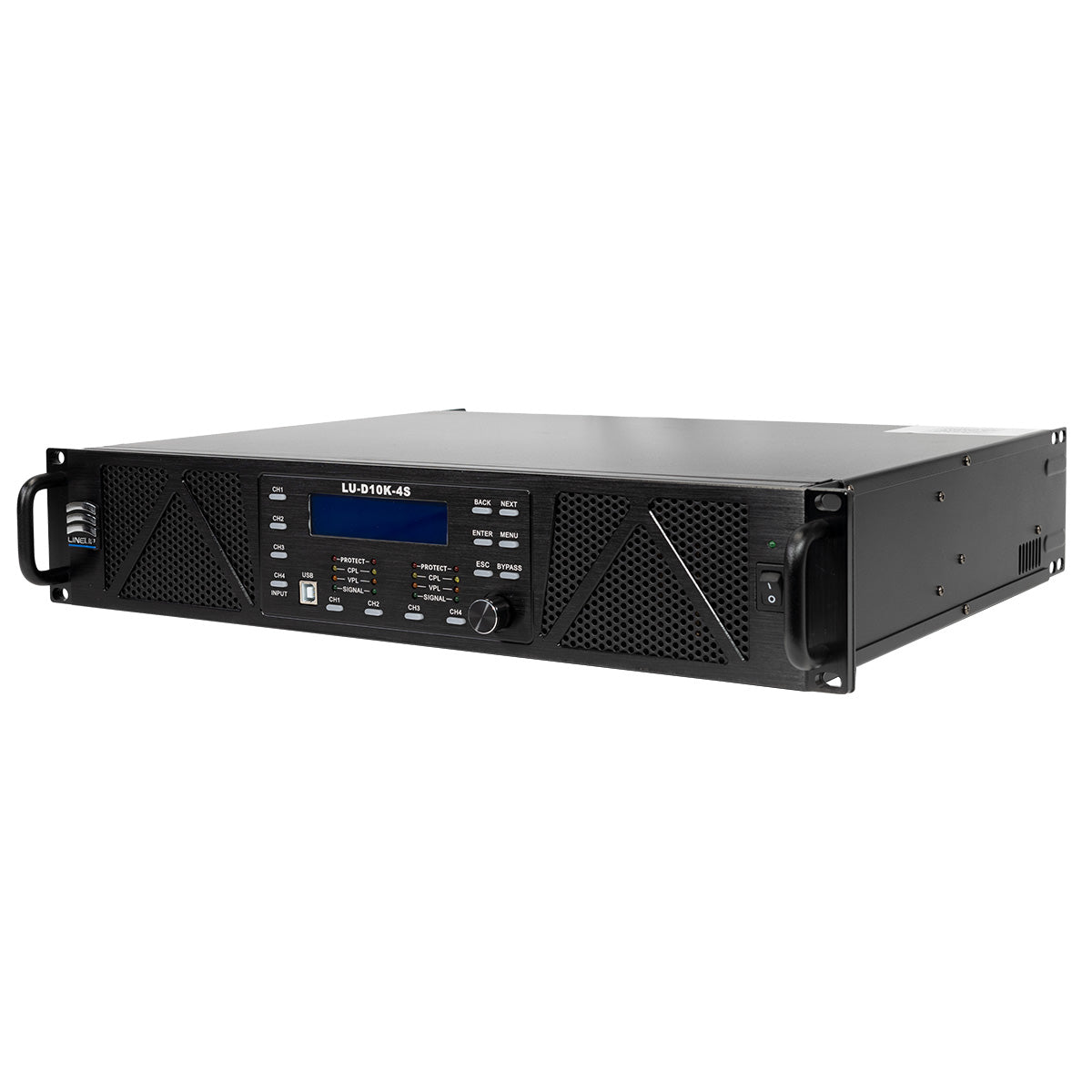

10000 Watts 4 Channel Class D Smart Amplifier D10K-4S
10000 Watts 4 Channel Class D Smart Amplifier D10K-4S
2980 Northwest 74th Avenue
2980 Northwest 74th Avenue
Miami FL 33122
United States
Lineup D10K-4S Power Amplifier: Power, Precision, and Control All-in-One
Unleash the full potential of your audio with the Lineup D10K-4S Amplifier, a powerhouse combining 4 channels of exceptional amplification with a built-in, full-featured digital signal processor (DSP) and network connectivity.
The Lineup D10K-4S Power Amplifier integrates a reliable supply, Class-D design, high efficiency, and unique variable speed cooling system for uncompromised performance and operational cost savings.
Whether you're a musician, DJ, audio installer, or venue owner, the Lineup D10K-4S Power Amplifier delivers crystal-clear, precisely tailored sound for any application.
Features:
- 4-channel amplification: Drive 2, 4 and 8 Ohm audio systems with impressive up to 10,000 watts of total power, ensuring clear, dynamic sound even in demanding environments:
- 8Ω Stereo Power 4 × 1350 Watts
- 4Ω Stereo Power 4 × 2200 Watts
- 2Ω Stereo Power 4 × 2500 Watts
- 8Ω Bridge Mono Power 2 × 4400 Watts
- 4Ω Bridge Mono Power 2 × 5000 Watts
- Built-in DSP: Fine-tune your sound with a powerful suite of features:
- Mute System: individual input channel and output channel muting system (8 Mute points)
- Polarity: Invert the signal phase of a channel, allowing you to correct phase mismatch between signals for improved soundstage and bass response.
- Gain: Adjust the input level of each channel independently, ensuring proper signal strength and preventing clipping.
- Crossover filters (Xover):Separate frequency ranges for each channel (Butterworth, Bessel, Linkwitz-Riley).
- 16 Parametric EQ filters per channel:Eliminate unwanted frequencies and sculpt your sound.
- Limiter: Set a maximum output level for each channel, preventing speaker damage from signal peaks while maintaining dynamics and clarity.
Beyond these core functions, these amps also offer:
- 20 Local User presets: Store up to 20 custom configurations in the internal memory for instant recall.
- Upload from PC and Download to PC unlimited parameters.

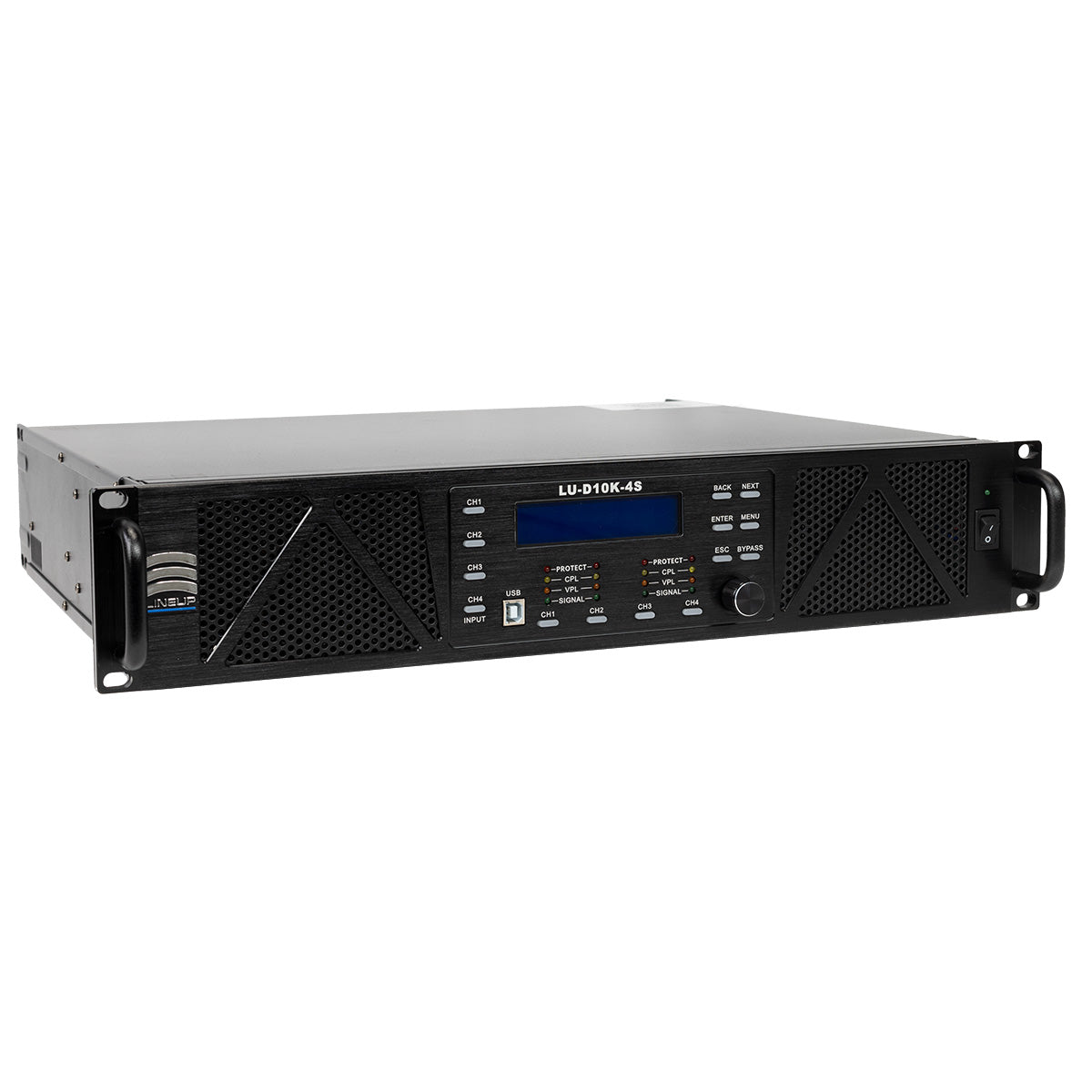

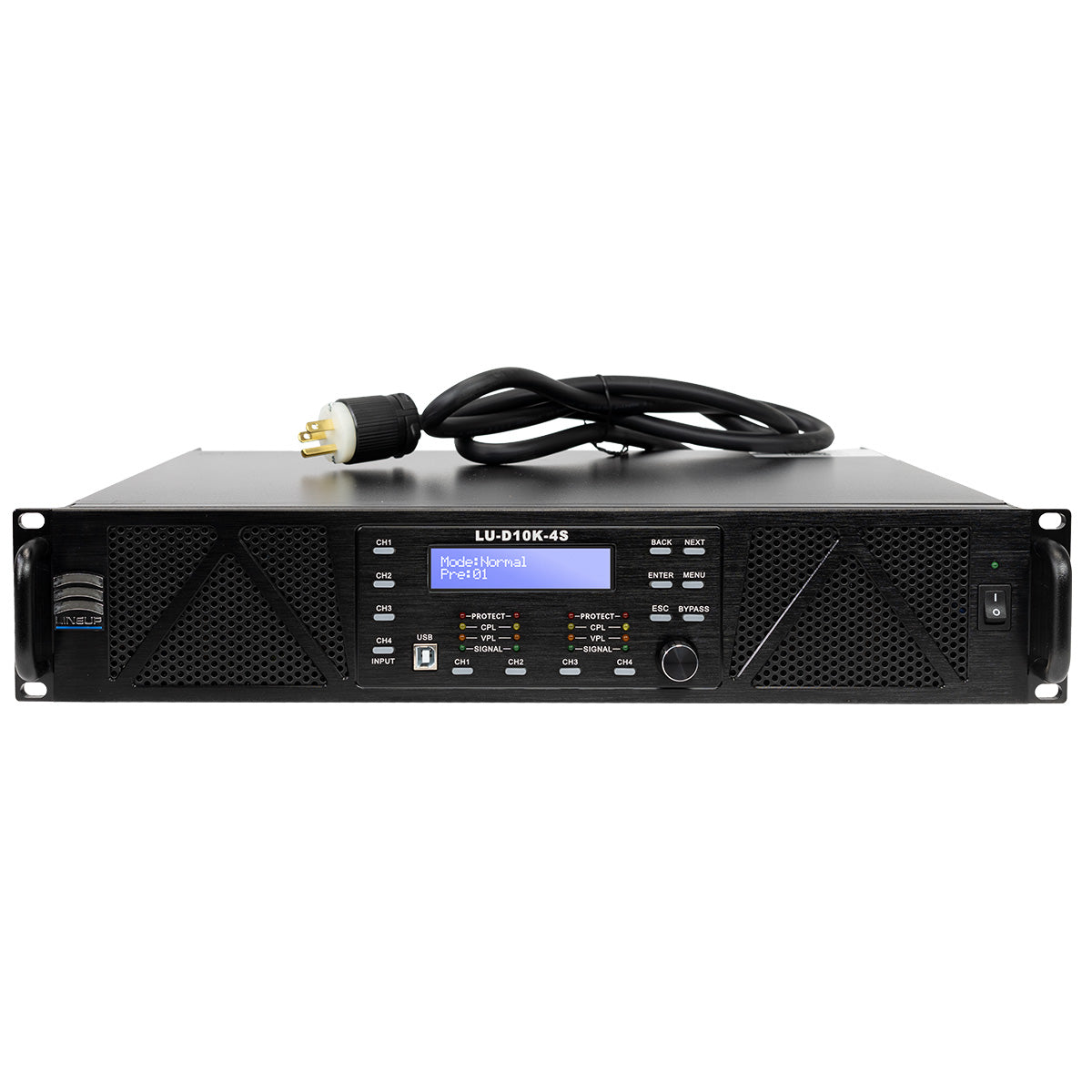

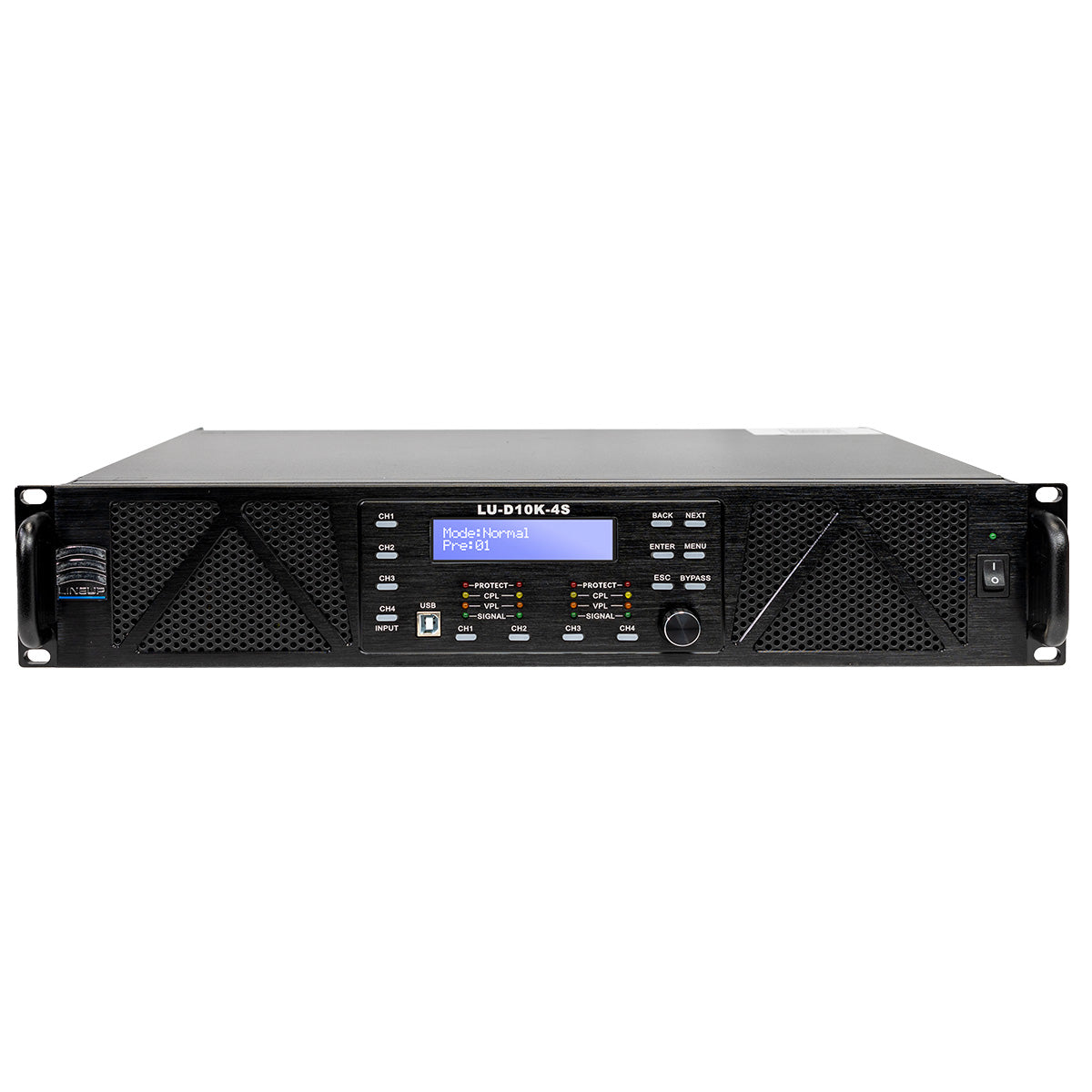

- Intuitive front-panel controls: Channel select, volume knobs, LED metering, navigation buttons, power button, and LED indicator.

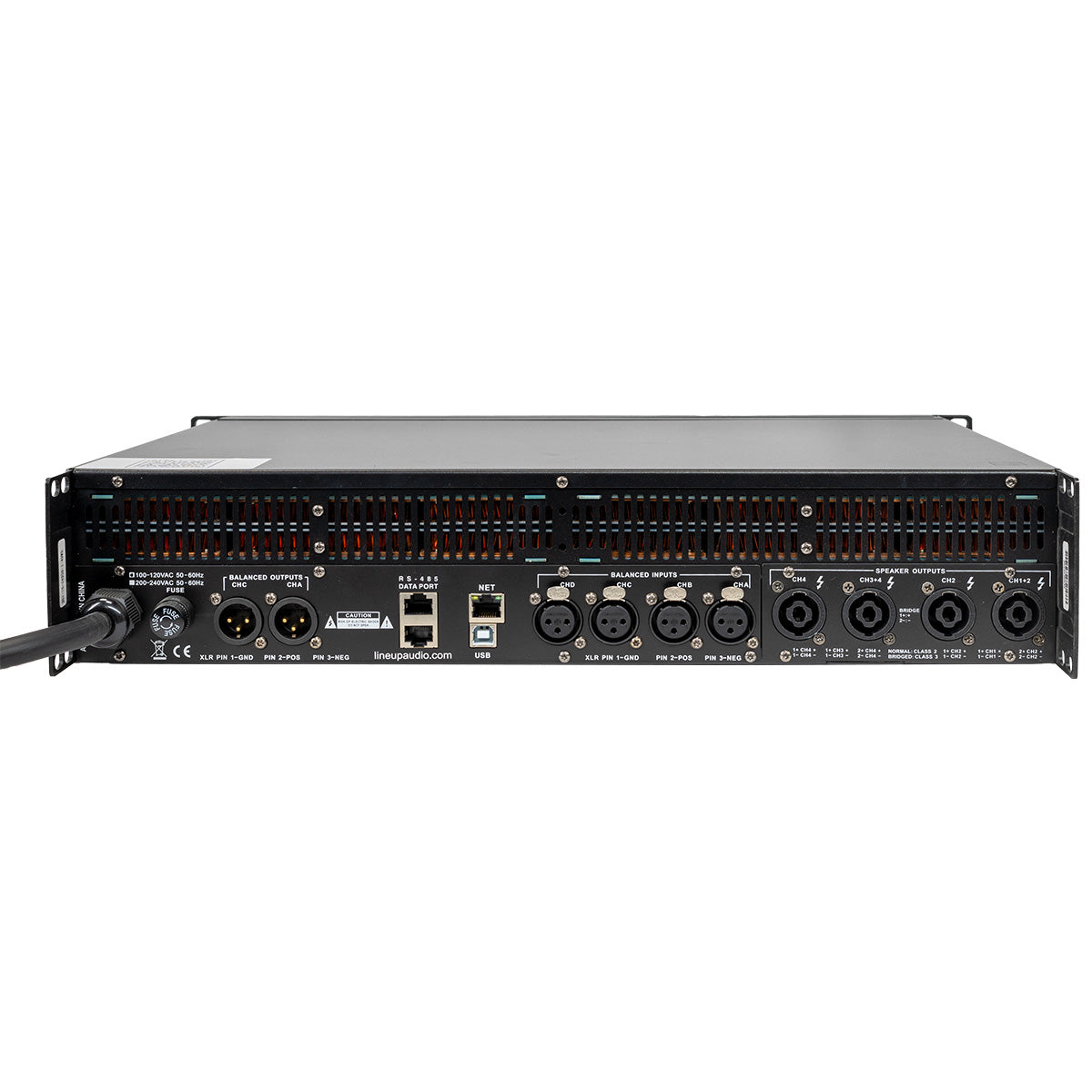

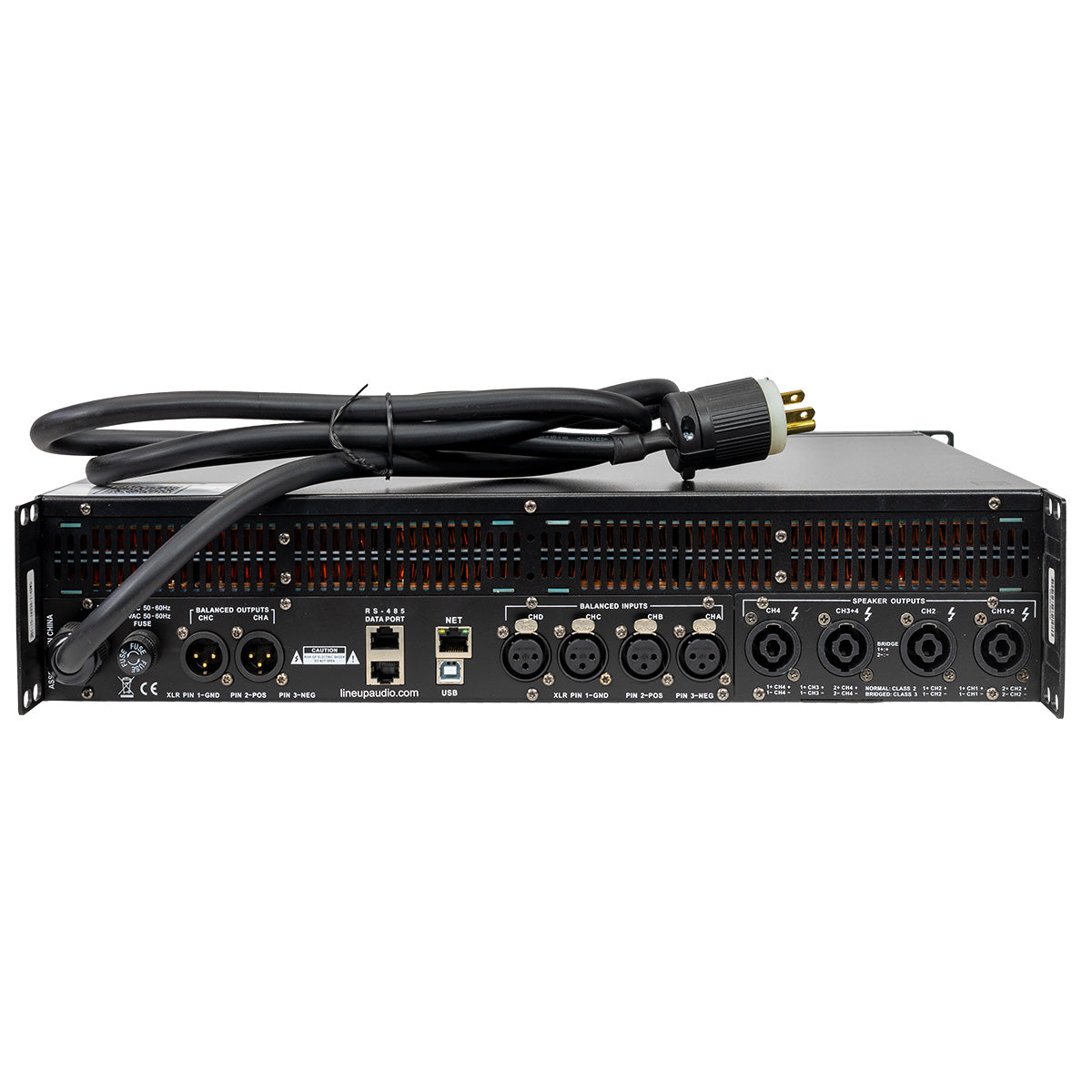

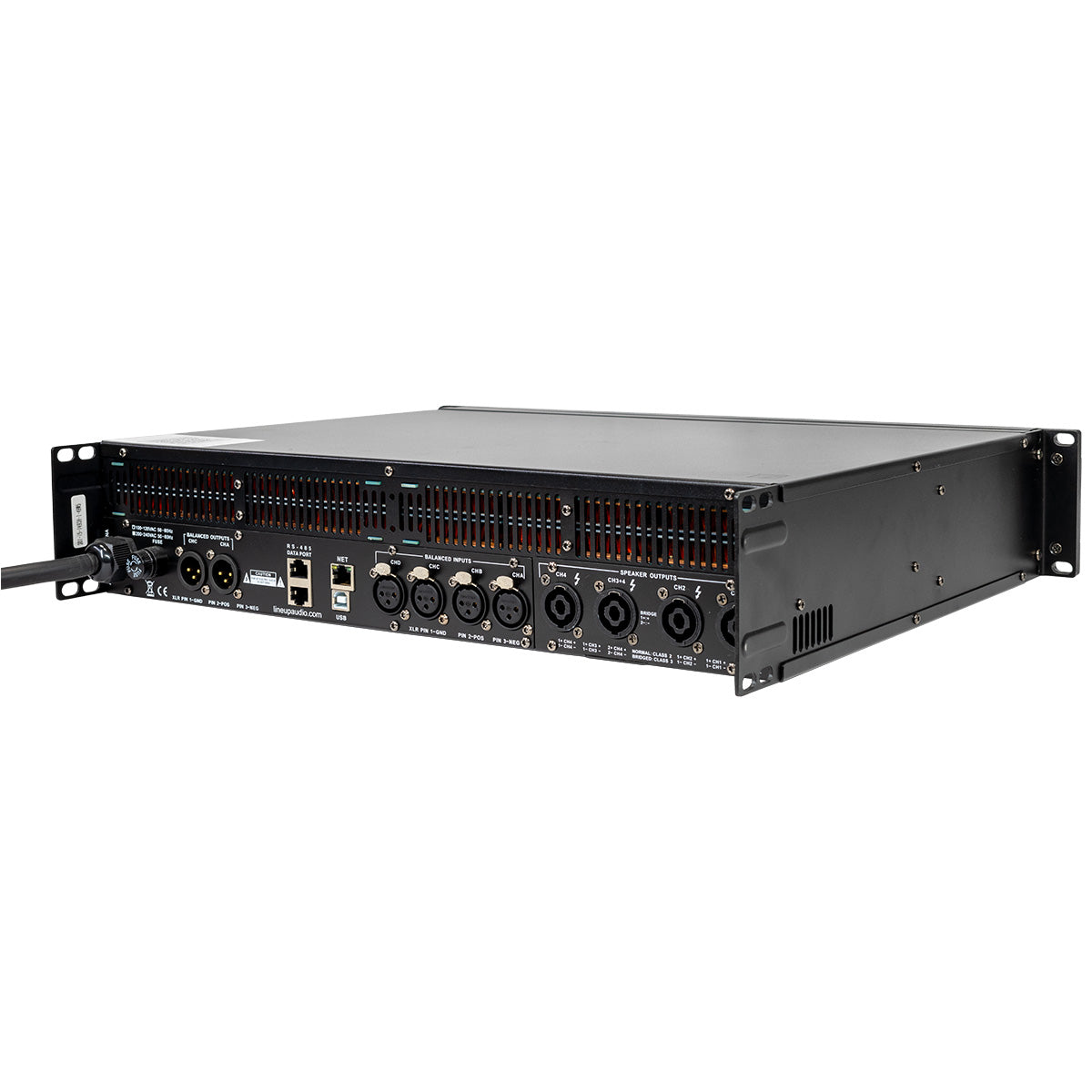

- Input and output: XLR & Speakon Connectors (NEUTRIK).
- Ethernet connectivity: Create a local network to control and monitor multiple amplifiers from a single computer.
- Exceptional audio quality: Frequency response of ±0.25dB and distortion of less than 0.01% for pristine sound.
Unprecedented Network Control and Flexibility:
The Lineup D10K-4S goes beyond traditional amplifiers with its versatile digital connectivity options:
- USB: Connect directly to your laptop for convenient configuration and control.
- RS485: Establish wired connections for multi-amplifier installations over longer distances.
- Ethernet: Unlock the true power of network control. Connect your laptop to a Wi-Fi network and control up to 265 D10K-4S Power Amplifier simultaneously, eliminating the need for individual adjustments, ideal for large venues, distributed audio systems, and complex setups.
With this comprehensive connectivity suite, the Lineup D10K-4S Amplifier offers:
- Centralized control: Manage and monitor multiple amplifiers effortlessly from a single user interface.
- Scalability: Adapt your system to any size or configuration with ease.
- Remote access: Control your sound system conveniently, even from different locations within the network.
The Lineup D10K-4S Amplifier is the perfect choice for:
- Musicians and DJs
- Audio installers
- Live event organizers
- Venues and houses of worship
- Anyone who demands superior sound quality and ultimate control.
Whether you're powering live music events, conferences, installations, or any other professional audio application, the Lineup D10K-4S Power Amplifier delivers the power, precision, and control you need to achieve exceptional sound.
Specifications:
DSP
- Input: 4 Channels
- Output: 4 Channels
- PC Com Port: 1 USB Com Port on front panel, 1 USB Com Port on the back panel, 2 RS485 Com Ports and 1 Ethernet Network connection RJ-45
- Processor: 48KHz Sampling frequency, 48-bit Fixed-Point DSP, 24-bit A/D and D/A converter
- Dynamic range: >110dB
- Frequency Response: ±0.25dB, 20Hz --- 20KHz
- Distortion: < 0.01%, 20Hz - 20KHz @ +10dBu balanced input
- Signal to noise ratio: >110dB
- Crossover filter: Each output channel can be independently set as LPF, HPF and APF. The parameters can be adjusted. Filter type: Butterworth, Bessel, Linkwitz-Riley. The Crossover Frequency: 20Hz - 20KHz, Slope: 12, 18, 24 or 48 dB/octave
- EQ: Bandwidth: 0.2 to 36 oct, Frequency: 20Hz - 20KHz, Gain: -24dB to +12dB, step:0.2 dB
- Delay: 0ms to 115ms
- Store Settings: 20 user programs dynamic storage
Amplifier
- Output Power
- 8Ω Stereo Power 4 × 1350 Watts
- 4Ω Stereo Power 4 × 2200 Watts
- 2Ω Stereo Power 4 × 2500 Watts
- 8Ω Bridge Mono Power 2 × 4400 Watts
- 4Ω Bridge Mono Power 2 × 5000 Watts
- Frequency Response: 20Hz - 20kHz ±0.5dB
- THD+N (Rated power, 4Ω/KHz)%: 0.10%
- Signal Noise Ratio (dB): 110dB
- Input Impedance: 20KΩ Balanced / 10kΩ Unbalanced
- Output Connectors: Speakon Connectors (NEUTRIK)
- Power Source: 100-120VAC 50-60Hz
Dimension (WxHxD): 19”x3.5”x14.7” (483x88x377 mm)
Weight: 28.7 lbs (13 Kg)
